Shine has three series of ion chromatograph: laboratory IC, portable IC and on-line IC.
The new D-series laboratory IC have been greatly improved in instrument stability, intelligence, convenience, functional diversity, and play an important role in the detection of common Anions, Cations and trace ions.
Portable IC can meet the needs of rapid on-site detection of unexpected events. lt not only keeps the accuracy of laboratory IC, but also makes up for the application defects of laboratory IC with the characteristics of portable, on-site and rapid detection.
On-Line water quality IC and On-Line atmospheric IC perfectly realize on-line pretreatment, automatic sampling, automatic data processing and other functions, which can continuously detect atmospheric and water quality.
CIC-D120 is a high-stability ion chromatograph with upgrade circuit. It can be compatible with external equipment such as amperometric detector, UV detector, and ultraviolet post-column derivatization device and so on. Using Shenghan leading IC column technology, the separation of anion, cation, cyanide, iodide, sugar and small molecular organic acids can be realized.
It is widely used in the fields of environment, disease control, food, chemical industry, electronics, mining and metallurgy.
Dimensions: 385 X 160 X 565 mm (width X height X depth)
Line Voltage : 100-240VAC, ±10%, 50/60Hz, ±5%, 100W
Modular analytical IC D120

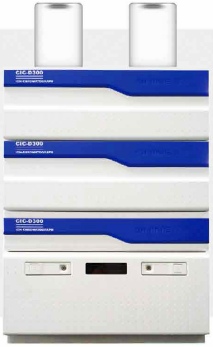

CIC-D300 is a ion chromatograph with dual-channel system design. It has stable performance and powerful function.
The workstation of the observatory realizes the integration of the two-channel workstation, which is easy and fast to operate and doubles the work efficiency.
One machine can meet the detection requirements of environment, food, chernical industry, electric power, disease control, electronics, mining and metallurgy and other fields.
• Cation and anion dual-channel system, with both channels operating independently without disturbing each other. It can realize the simultaneous detection of anions and cations;
• Eluent thermal buffer system in which eluent enters into the columns after preheated, to avoid bubbles generated from rapid heating;
• Intelligent flow path mode, one-key operation to complete flow path switch, automatic clearing to save time and labor;
• Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
• The world's leading full-range series of chromatographic columns able to detect of ions with varied compositions.
Pump: Maximum Pressure: 35 MPa (PEEK)
Pressure Display Accuracy: 0.1 MPa
Flow Rate Range: 0.001- 9,999 mL/mn
Cell Volume: 0.8 uL
Detection Range: 0 – 50’000 uS/cm
Temperature Range: Room temperature +5 - 60°C
Controlling Temperature Accuracy: ±0.01°C
Maximum Pressure: 10Mpa
Built in Eluent Generator
Eluent Types: KOH/NaOH/MSA
Eluent Concentration Range: 0.1-100 mM
Concentration Increment: 0.1mM
Flow Rate Range: 0.1-3 mL/min
Pressure: 5 MPa – 20 MPa
Dimensions (L x W x H) : 500 x 500 x 160 mm
Power Requirements: 350 W
Net Weight: 48 kg
Modular analytical IC D160
CIC-D160 is a high-stability ion chrornatograph with upgrade circuit technology, which can detect anion, cation, cyanide, iodide, sugar and small molecular organic acids. It is widely used in the fields of environment, disease control, food, chemical industry, electronics, mining and metallurgy.
Bulit in eluent generator, free from configuring eluent, with gradient elution available
High pressure resistance, small dead volume, highly responsive to signals.
Built-in Low-pressure degassing technology to eliminate bubble interference for stability
High pressure resistance, small dead volume, highly responsive to signals
Modular design, convenient to assemble and disassemble, easy to operate;
Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;
Work across a variety of detectors, to expand the scope of applications of ion chromatography.
Pump: Maximum Pressure: 35 Mpa (PEEK)
Pressure Display Accuracy: 0.1 MPa
Flow Rate Range: 0.001-9.999 mL/min
Power Requirements: 150 W
Dimensions (L x W x H): 350 x 470 x 650 mm
Net Weight: 34kg
Gross Weight: 40 kg
Cell Volume: 0.8 uL
Detection Range: 0-50’000 uS/cm
Baseline Drift: < 3% FS/ 30min
Temperature Range: Room temperature 5 – 60 °C
Maximum Pressure: 10 MPa
Built-in Eluent Generator
Eluent Types: KOH/NaOH
Eluent Concentration Range: 0.1 – 10 mM
Concentration increment: 0,1 mM
Flow Rate Range: 0, 1 - 3.0 mL /min
Pressure: 5 Mpa – 20 MPa
Modular analytical IC D300
Portable IC not only keeps the accuracy of laboratory IC, but also makes up for the application defects of laboratory IC with the characteristics of portable, on-site and rapid detection.
Powerful data processing system and Iconic display, customizable interface, integration of instrument control, data analysis and processing,data sharing module for on-site and remote data sharing through 4G network;
Quick columns for 5 min rapid detection Original quick columns for on-site quick detection of anions and cations;
Intelligent flow path cleaning makes easier cleaning The flow path is designed with a switching valve for free switch of eluent bottles and pure water bottles;
WIFI communication, real-time operation Being equipped with a tablet/laptop makes real-time operation more flexible and convenient.
Upgrade supported dual detectors ( conductivity detector and amperometric detector) to meet the needs of different industries.
Maximum Pressure: 35 Mpa (PEEK)
Flow Rate Range: 0.001~9.999 mL/min
Flow Accuracy: ± 0.5%
Flow Repeatability : RSD ≤0.1%
Maximum Pressure: 35 Mpa controlled by stepper motor
Power Requirements: 24V (DC)
Temperature Range: Room temperature +5~ 60°C,Temperature Stability: ≤0.05°C/h
